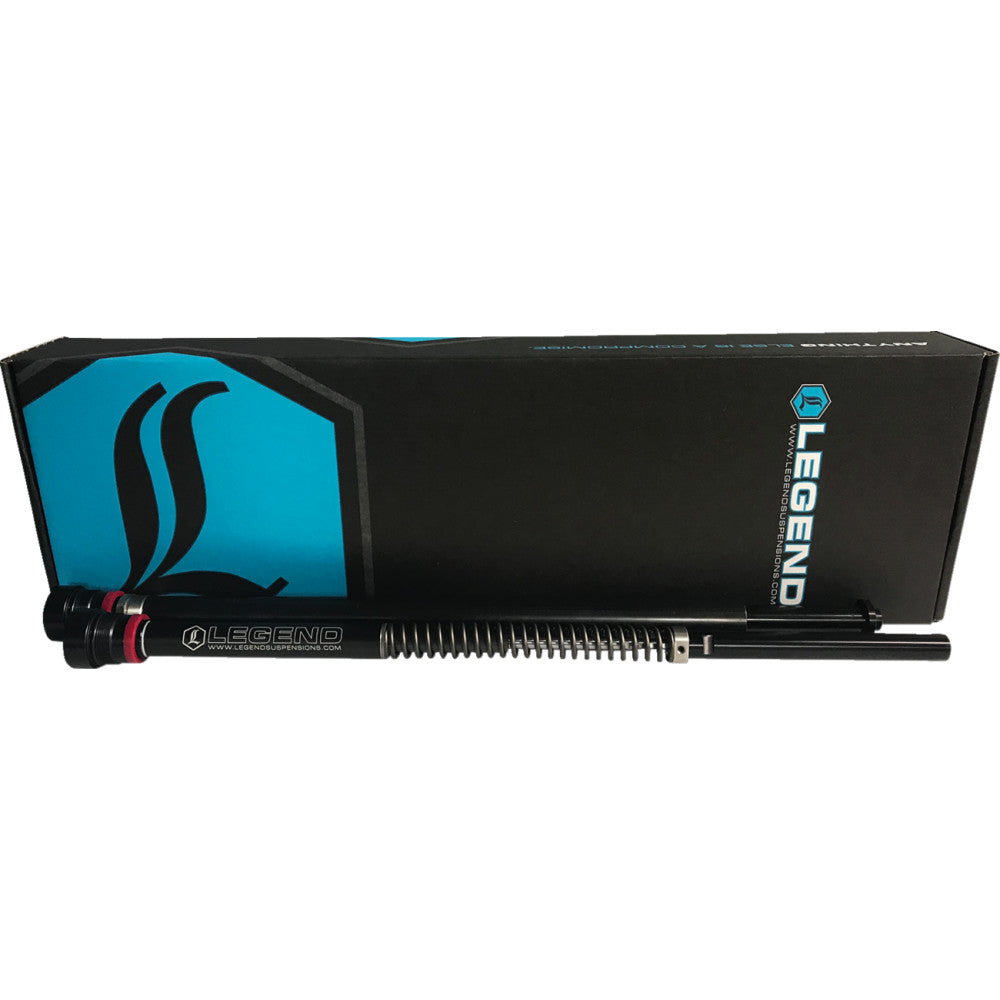

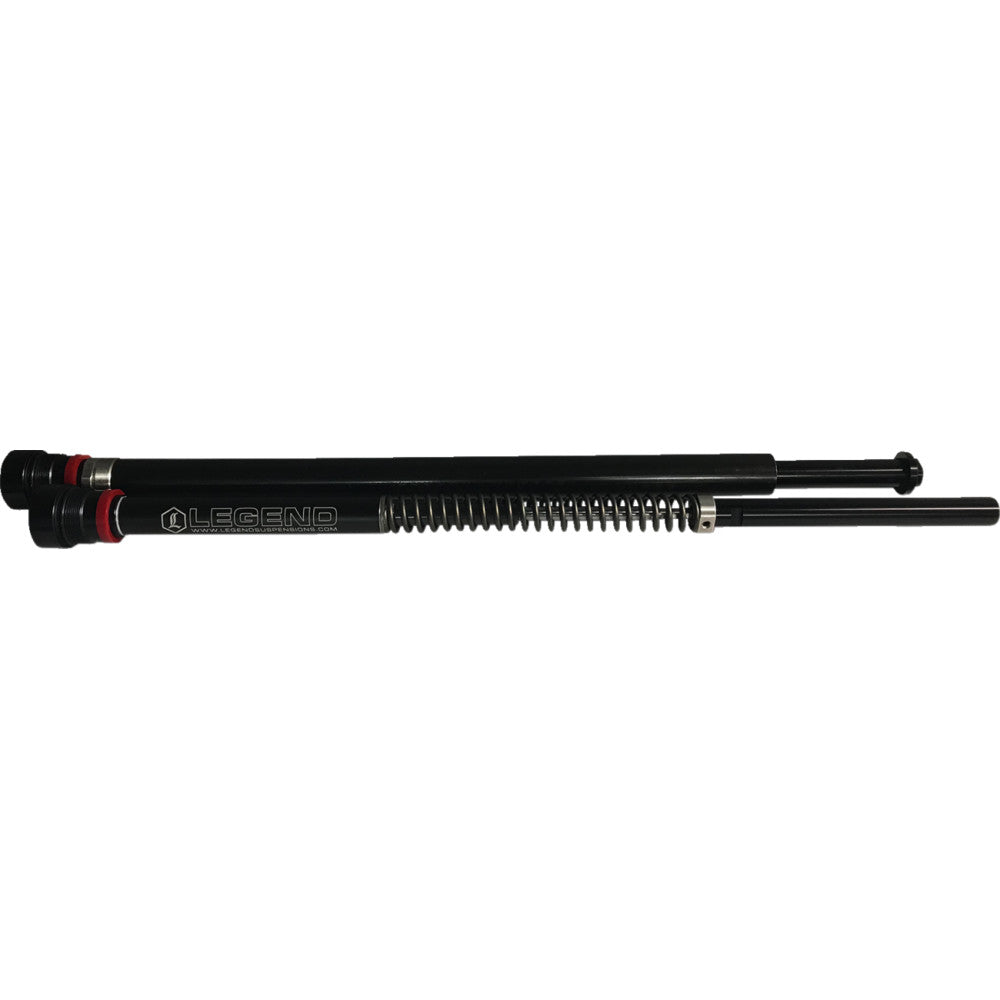

Legend Suspension AXEO43 Inverted High-Performance Front End Suspension System - 43 mm - Key Features
Key Features
Replaces the asymmetrical stock fork internals with a high-performance twin cartridge setDesigned to be used with stock diameter front wheelsEasy installationIncludes two mono-tube, dual chambered damper cartridgesPerformance spring rateMachined 303 Stainless threaded pre-load adjusterInternal linear spring guide and polyurethane bump stop are unique to the Legend Axeo43 systemRide quality is smooth and controlledImproves stability, cornering, and tractionEliminates front-end dive during aggressive braking and maneuveringFirm feel for high-speed sweeping turnsEliminates bottoming out on large bumps or potholesReduces dragging floorboards and pegsDesigned for optimum performance with Legend rear suspensionsMade by hand in Sturgis, SD USAP65 WARNING: Cancer and Reproductive HarmSpecifications
| Product Name |
Cartridge |
| Type |
Fork Damping |
| Style |
Inverted |
| Model |
Axeo |
| Color/Finish |
Black |
| Fork Tube Diameter |
43.00 mm |
| Units |
Kit |
| Riding Style |
Street |
Fitments
- 2022-2024 Harley Davidson Softail Low Rider ST FXLRST
- 2020-2024 Harley Davidson Softail Low Rider S FXLRS
- 2018-2023 Harley Davidson Softail Fat Bob 114 FXFBS
- 2018-2019 Harley Davidson Softail Fat Bob FXFB
Additional Notes
Incorporates static sag to shorten overall fork tube length by approximately 1/2", resulting in weight transferred to the front wheel for improved handling.
